Vacuum Chuck for Wood Lathe- Holds Bowls Secure for Finishing

Simple Woodturning Tools SKU: 1 - 8 Vacuum Chuck Barcode: 0751354986280

$135.99 $149.49 Save $13.50

Available Threads:: 1" - 8
Tube Length (beyond end of chuck):: 18.5"

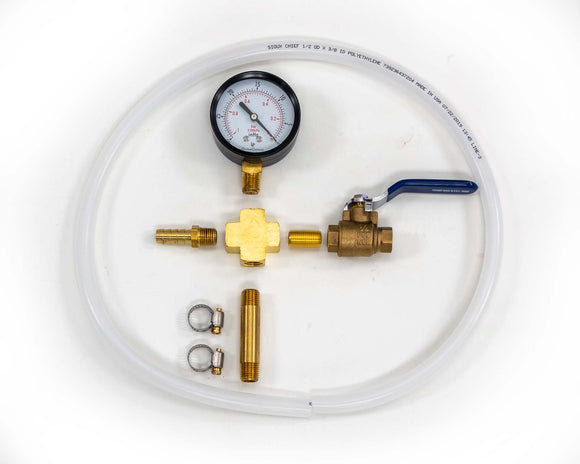

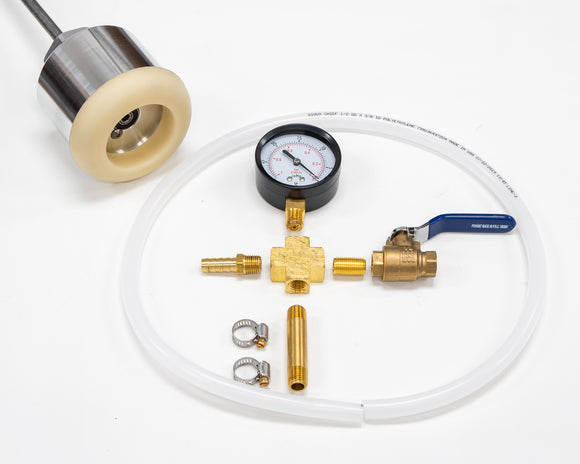

Add Vacuum Manifold?: No Manifold Kit

Available Now!
Description Shipping

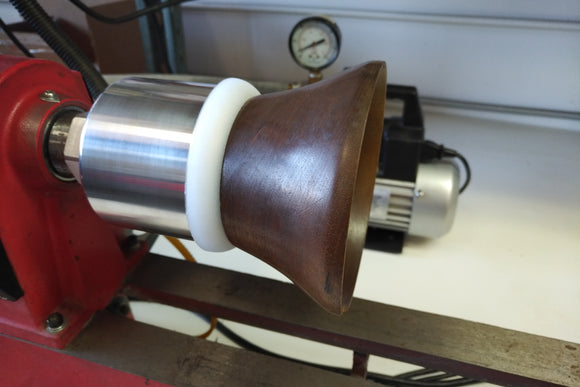

Don't let any more bowls fly off the wood lathe. Hold your bowls and projects secure with our Vacuum Chuck.

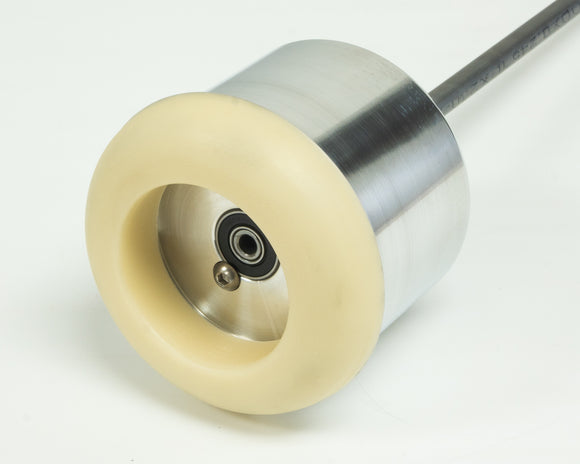

CNC machined from solid aluminum.

"Very nicely made. Rubber seal is very robust and should last forever. Refinishing bowls has never been so easy, thank you plenty!!" Anonymous

How to use this wood lathe chuck:

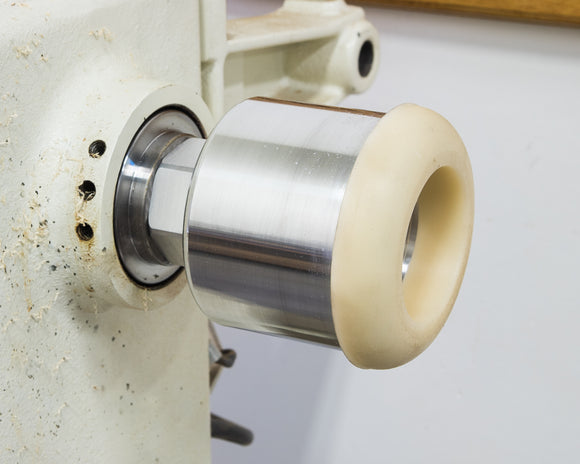

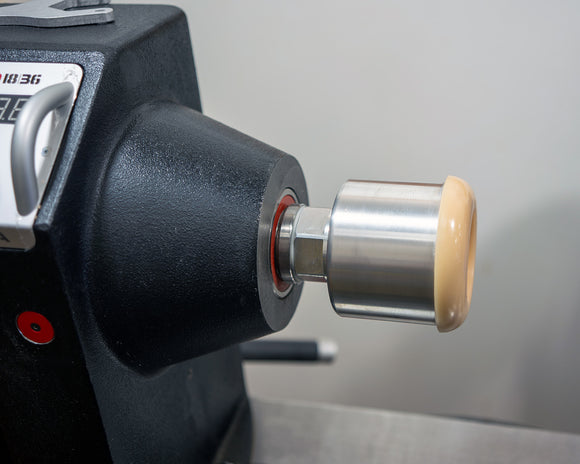

  • Thread the vacuum chuck onto the lathe spindle

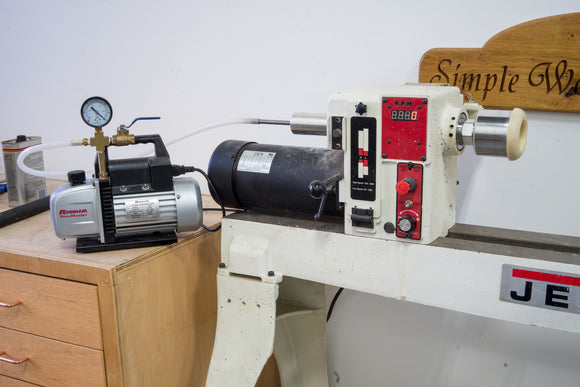

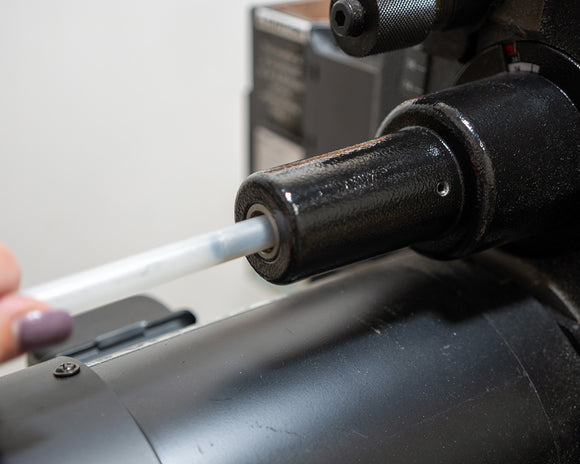

  • Using a 3/8" ID plastic tube, connect a good vacuum supply to the 3/8" OD tube that passes through the headstock from the chuck.

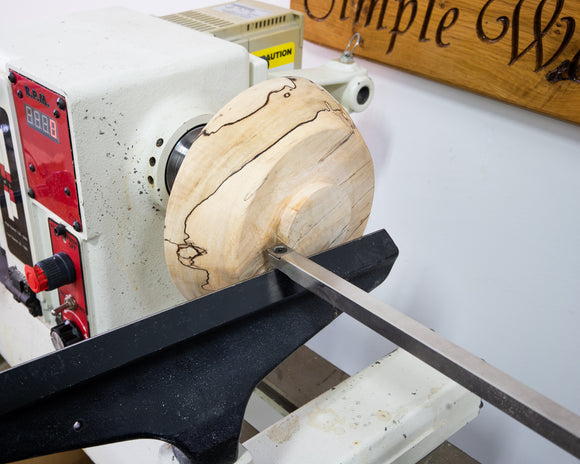

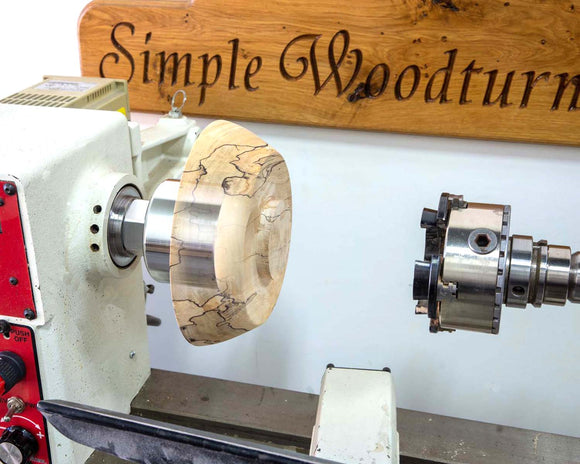

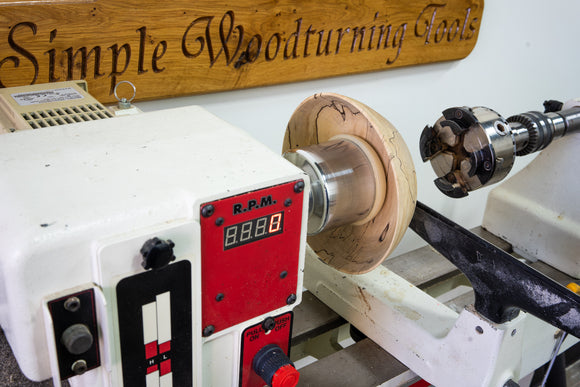

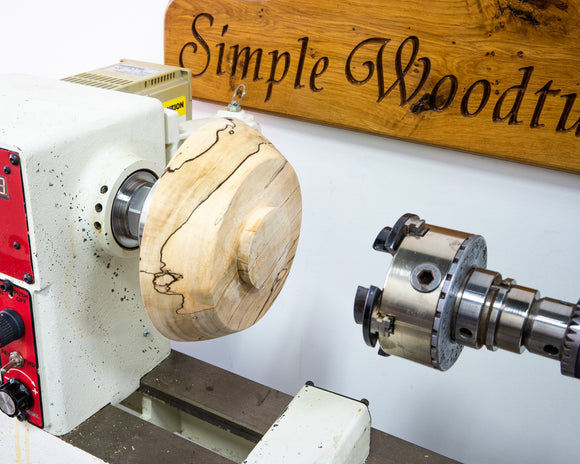

  • Position your turning on the chuck and turn on the vacuum.
  • Smile because you now have a great way to finish your turnings!

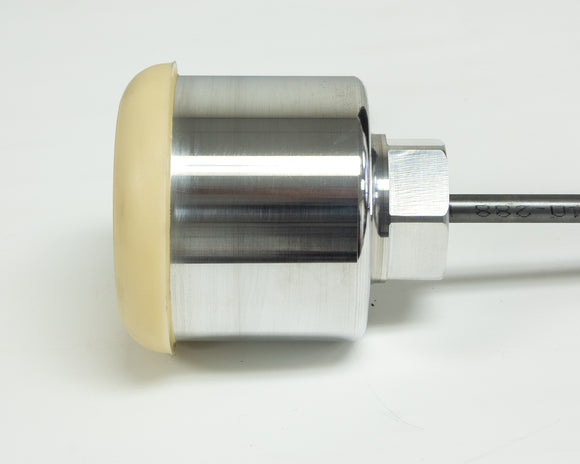

Note: A vacuum swivel is not needed with this chuck because the tube inside the chuck is mounted in a bearing so it remains stationary as the chuck rotates.

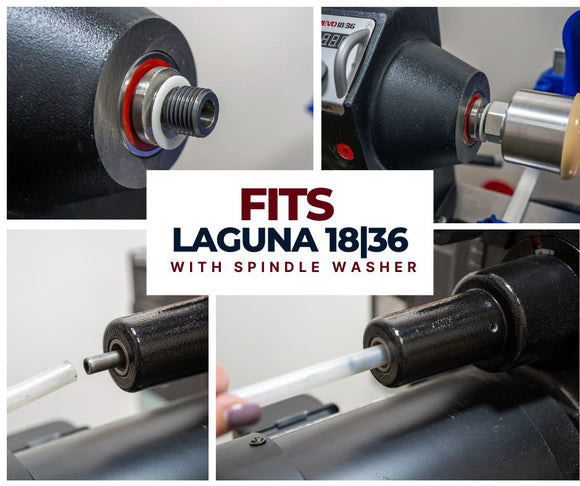

  • Threads: select from 1", 1-1/4" or 1-1/2" available in the drop down box above.
  • Outside diameter: 3.5"
  • Overall length: 4"
  • Steel tube length: Select the length you need from the two options 18.5" or 20.75" beyond the end of the chuck.
  • Chuck material: 6061 aircraft aluminum

VACUUM PUMP SUGGESTIONS:

Watch 2 video demonstrations of the Simple Vacuum Chuck for woodturning below.



    Source for the vacuum pump: We use this Robinair pump: Link to Amazon pump
    *Some have reported oil mist smoke from this Robinair pump. We learned about a carbon exhaust filer from Best Value Vacs and found their p/n BVVP4F screws onto the Robinair pump 15310 nicely. Link to carbon exhaust filter here.

    Any questions just email, we're glad to help.
